1U Rack Mounted 24 Port ODF
Description:
Rack-mount fiber optic distribution frame is modulated design with draw able trays inside and cold-rolled steel box. It could be pre-installed with various kinds of fiber optic adapters and pigtails.
It is with standard 19 inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss. Its front mark on the plates is easy for identification and operation.

Features:
Dimension (cm): 49(W)x30.5(L)
Height: 1U, 2U, 3U, 4U….. according to cores
Weight (kg): according to cores.
Capacity: 12 cores, 24 cores, 36 cores, 48 cores, 64 cores, 72 cores, 96 cores.
Draw able trays inside changeable
various panel plates to fit different adapter interface
Standard size, can be used in 19”, 23” standard distribution frame.

Specifications:
available for the installation of FC, SC, ST, LC adaptors
Applicable in the branch connection of fiber termination

Application:
1.Telecommunication networks
2.CATV net

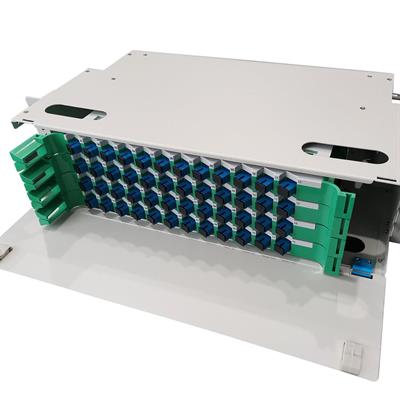

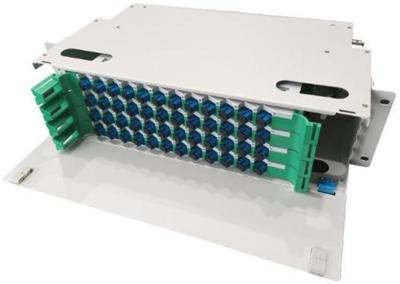

48 port ODF Black Rack Mount SC/APC & SC/UPC fiber optic termination box

This optical splitter chassis is standard 3U 19’’ rackmounted type frame. Suitable for different kinds of equipment which is designed according to 19’’ cabinet, can loaed with 12pcs small splitter box.

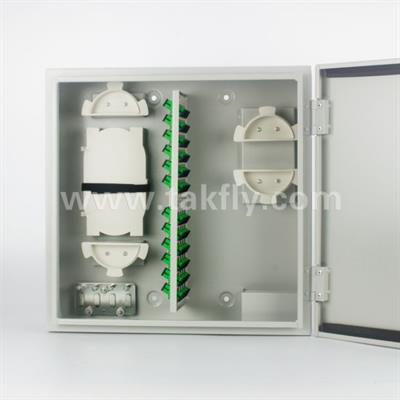

Wall Mount ODF is designed to manage fiber splices and patching of fiber links with ease of maintenance for installers. This wall mount optical fiber distribution includes double door access and keyed entry. It is suited to patching cables in controlled environments and offers efficient storing excess fibers.

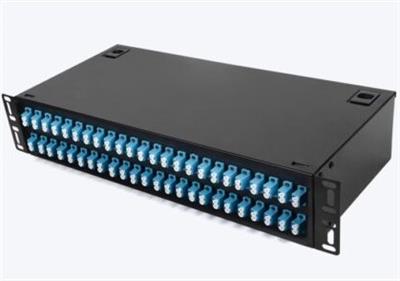

96 Port ODF Optical Fiber Distribution Frame ODF

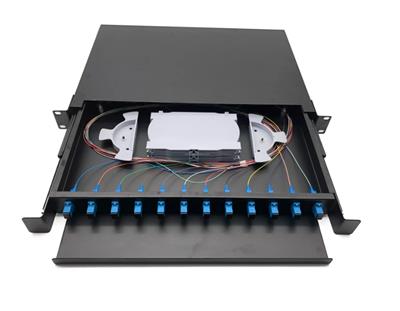

Rack Mount 24 port ODF SC/ST/FC/duplex LC fiber optic termination box fiber patch panel

12 port ODF SC/APC & SC/UPC fiber optic termination box

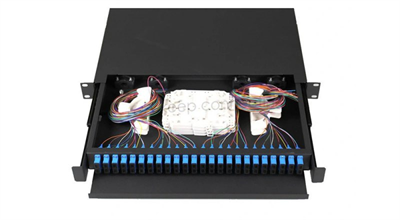

Rack Mount 48 port ODF SC/ST/FC/duplex LC fiber optic termination box 48FO fiber patch panel. Rack Mount type fiber optic enclosure patch panel is an integrated unit for fiber distribution, Trochi offer wall mounted fiber optic patch panel and rack mounted fib...

Rack Mount 48 port ODF SC/ST/FC/duplex LC fiber optic termination box 48FO fiber patch panel.
Rack Mount type fiber optic enclosure patch panel is an integrated unit for fiber distribution, Trochi offer wall mounted fiber optic patch panel and rack mounted fiber optic patch panels, these equipment function is to fix and manage the fiber optic cables inside the box as well as provide protection.
There different models to fit for 4 6 8 12 core fiber,24 core fiber,36 core fiber,48 core fiber, 72 core fiber,96 core fiber,144 core fiber applications. They can be with different adapter interface including the SC, ST, FC, LC MTRJ, etc. related fiber accessories and pigtails are optional.

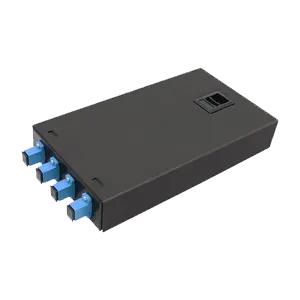

Factory made FTTH ODF SC/FC/ST/LC rack mount Splicing 4 ports patch panel fiber optic terminal box 4 core

Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC,etc. adapters. And Fiber Quantity can be 12 core, 24 core, 48 c...

Slidable Rack-mount Fiber Optic Distribution Frame has aluminum sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, MTRJ, FC,etc. adapters. And Fiber Quantity can be 12 core, 24 core, 48 core, 96 core etc.The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

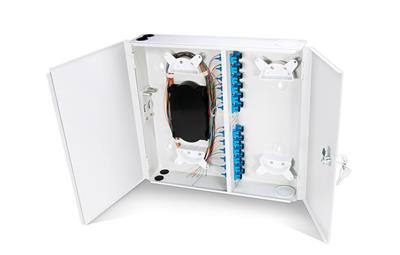

Wall Mount ODF is designed to manage fiber splices and patching of fiber links with ease of maintenance for installers. This wall mount optical fiber distribution includes double door access and keyed entry. It is suited to patching cables in controlled environments and offers efficient storing excess fibers.

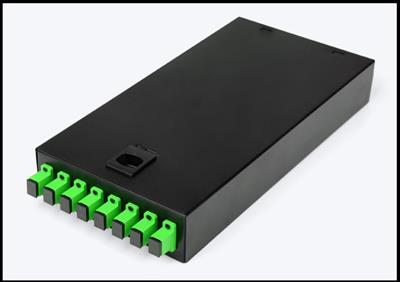

Rack Mount ODF-8 Port SC/APC Terminal Box
